Product Details
＋
Features and Benefits
- Integrated vacuum pickup for easy component removal
- Profile creation for operator repeatability and storage for up to 50 user defined profiles
- Manual mode for quick setup
- External thermocouple for process setup and verification
- Handpiece controls for heater and vacuum
- Programmable, digitally controlled airflow for repeatable results
- Multiples modes of operation: Manual, 4 zone heating (with the MRS-1100A system)
- The HCT-1000 is connected to the PCT-1000 via a cable when used as part of the MRS system
- May be used with ATH-1100A Adjustable Tool Holder
- HN-J0005 Round Nozzle 5.0mm included
Product Includes
- HCT-PS1000 Power Supply
- HCT-HV1 Handpiece
- HN-J0005 Nozzle
- HNA-1 Nozzle Adapter

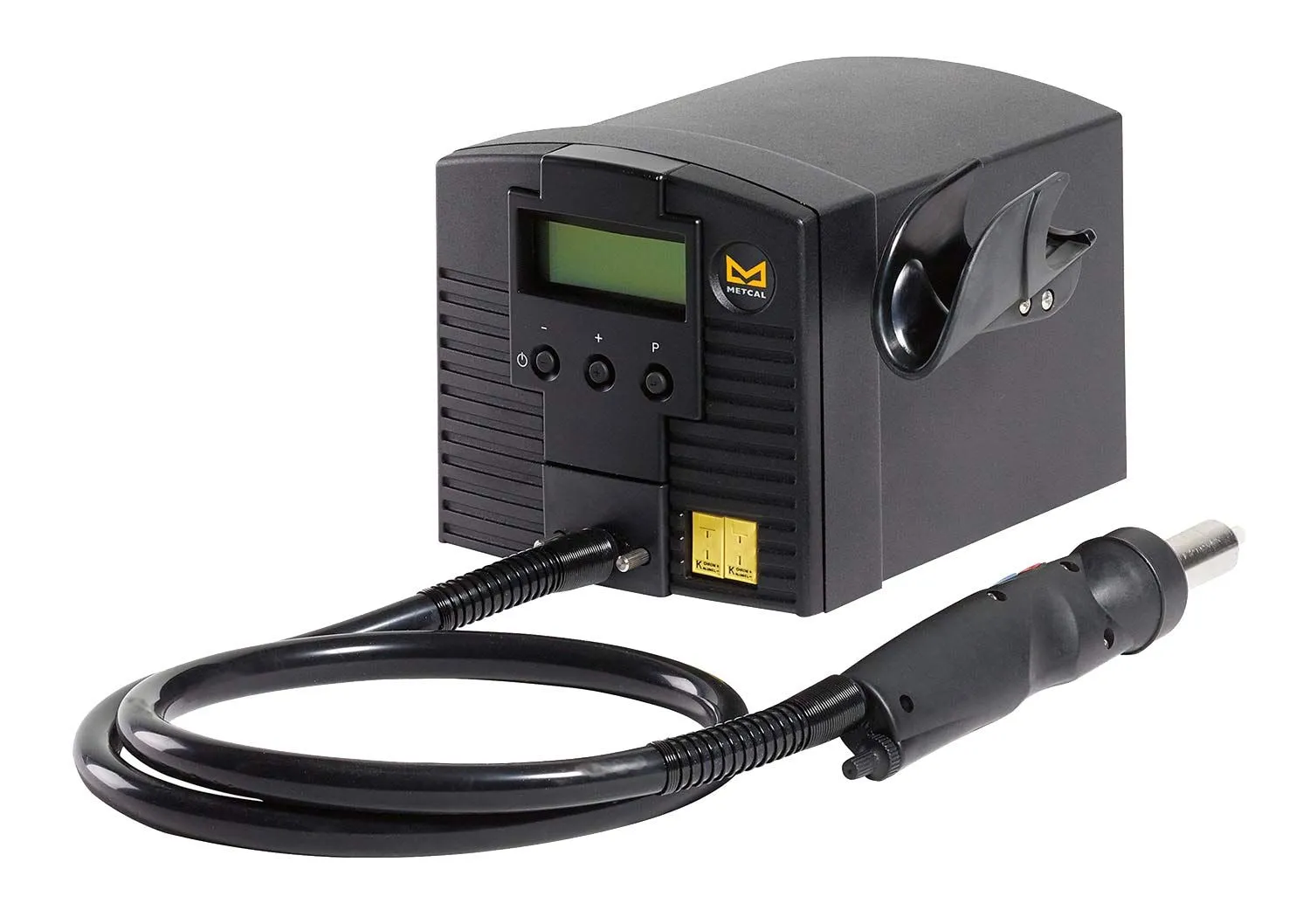

The HCT-1000 System is a fully programmable hand held convection rework tool that can both remove and place SMT components. It features digital controls, internal or external thermocouple feedback control, program storage of up to 50 profiles and integrated vacuum pick-up for component placement and removal.
